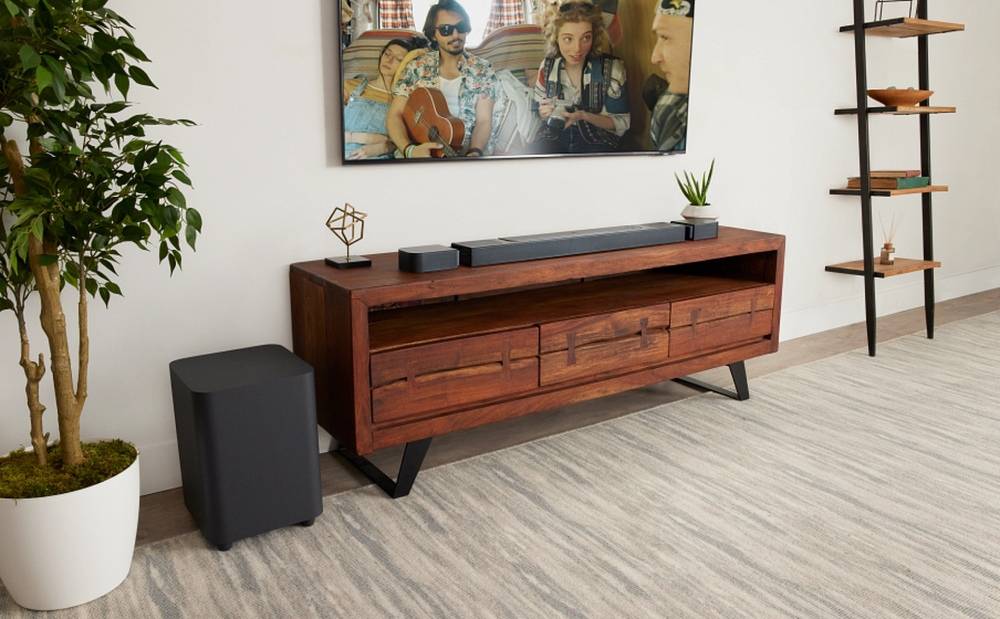

Elevate cinematic nights and let music take you to a whole new dimension. With a combined sound of 720 watts, the bass is blown away by a 10-inch wireless subwoofer, the JBL Bar 800 with Dolby Atmos® features two top speakers and battery-operated removable wireless surround speakers. PureVoice technology keeps conversations clear even when sound effects are booming. Wireless connection Stream your favorite music via AirPlay, Alexa, MRM, or Chromecast built-in™.
Power supply100 - 240V alternating current, ~50/60HzNetwork standby power< 2.0 WOperating Temperature0°C - 45°C"
TOTAL SPEAKER OUTPUT POWER (UP TO @THD 1%)"720WVOCAL CORD POWER (UP TO @THD 1%)"340WAMBIENT SPEAKER POWER (UP TO @THD 1%)2x 40WSubwoofer sound power(up to @THD 1%)"300 WSoundbar SpeakerThere are 3x (46x90) mm racetrack drivers, 3x 0.75" (20mm) tweeters, and 2x 2.75" (70mm) up-firing full-range drivers.Surround speakersThere is a 1x (46x90) mm racetrack driver voice changer.Subwoofer10" (260mm) voice changerFrequency of sound response35Hz - 20kHz (-6dB)Audio input1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, and USB (USB playback is available on US models, for other models, USB is for service only)
Soundbar size (WxDxD)1174 x 56 x 120 mm / 46.2" x 2.2" x 4.7"Soundbar main body (WxDxD)884 x 56 x 120 mm / 34.8" x 2.2" x 4.7"Detachable surround speakers(per piece) (WxDxL)145 x 56 x 120 mm / 5.7" x 2.2" x 4.7"Subwoofer (WxDxL)305 x 440.4 x 305 mm / 12" x 17.3" x 12"weight3.4 kgRemovable round speaker weight (each):1.3 kgSubwoofer Weight:10 kgPackage dimensions (W x H x D):1000 x 375 x 475 mmPackage Weight:18.9 kg
USB PORTType AUSB RATING 5V DC, 0.5ASupported file formatsMP3MP3 AUDIO CODECMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3RANDOM RATE OF MP316 - 48 kHzBITRATE OF MP380 - 320 kpbsBluetooth version5.0Bluetooth profiles A2DP 1.2, AVRCP 1.5Bluetooth transmitter frequency range2400MHz – 2483.5MHzBluetooth is being transmitted.<15dBm (EIRP)Wi-Fi networksIEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)2.4G Wi-Fi transmitter frequency range 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)2.4G Wi-Fi transmission power< 20dBm (EIRP)5G Wi-Fi transmitter frequency range:5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHzPower of 5G Wi-Fi transmitter:5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)2.4G WIRELESS TRANSMITTER FREQUENCY RANGE:2406 - 2474MHPOWER OF 2.4G WIRELESS TRANSMITTER:＜10dBm (EIRP)
HDMI VIDEO RECEIVER PORT1HDMI output information (with Enhanced Audio Return Channel, eARC)1HDCP VERSION OF HDMI2.3THROUGH HDR PLAYBACKHDR10, Dolby Vision
1 x Soundbar 2x Detachable wireless round speakers1x Wireless subwooferRemote control with 2 x batteries Power cord (up to 8 wires, depending on model)1 x HDMI cable 2 x set wall mount speaker bracket 2 pcs (for main speaker) + 2 x (for surround speaker) with screws4 x Side CapGetting Started GuideSafety Manual and Warranty CardMold plate for wall mounting
