JBL BAR 1300MK2
Black

FREE SHIPPING
100%
AUTHENTIC
1 YEAR
WARRANTY

Dolby Atmos® and DTS:X technology

Experience Dolby Atmos® and DTS:X with crisp and realistic 3D surround sound from the JBL BAR 1300MK2.
Deep, powerful bass thanks to the small yet potent subwoofer. The surround speakers can be detached and connected via Bluetooth® to become portable speakers, delivering rich sound anywhere in your home.

Dolby Atmos® and DTS:X technology


Experience Dolby Atmos® and DTS:X with crisp and realistic 3D surround sound from the JBL BAR 1300MK2.
Deep, powerful bass thanks to the small yet potent subwoofer. The surround speakers can be detached and connected via Bluetooth® to become portable speakers, delivering rich sound anywhere in your home.
<span>Powerful JBL Pro Sound</span>

Product Description

Experience cinematic sound in seconds. Fill your entire room with immersive 3D spatial audio and Dolby Atmos® and DTS:X, easily customize the sound to suit any moment.

Simply lift the detachable wireless speakers from both ends of the JBL BAR 1300MK2 and place them behind your seating position. Whether spaced apart to create a more dramatic effect for a superhero movie night with family, or placed close together to create a warm ambiance with a romantic playlist from hundreds of streaming services, they're perfect for any occasion.

Experience the power of deep, impactful bass from this compact yet powerful subwoofer, along with a wider and more realistic soundstage thanks to MultiBeam™ 3.0 technology.

When you're not watching TV, you can also pair one or both detachable speakers with a Bluetooth® device to use them as portable speakers, delivering powerful sound to every corner of your home.

All of this works seamlessly with your TV, because the sound from the TV alone may not deliver the power and dimension of sound you deserve. And JBL is a brand that has been creating quality sound for movie theaters, recording studios, and concert halls for almost a century.

It's time to bring professional-grade sound into your home.
General Specifications
Audio
11.1.4 channel
Power supply
100 - 240V AC, ~ 50/60Hz
Networked standby power
< 2.0 W
Operating Temperature
0°C - 45 °C
lithium battery
7.2V, 4722mAh
Audio Specifications
TOTAL SOUND TRANSMISSION POWER (UP TO @THD 1%)
 2,470 W
Soundbar power output (maximum @THD 1%)
950 W
Surround speaker power output (maximum @THD 1%)
2x 160 W
Subwoofer power output (maximum @THD 1%)
1,200 W
RMS power output at 1% total harmonic distortion.
480 W, 250 W, 2x40 W, 150 W
Soundbar speaker drivers
8x (50x75mm) racetrack drivers,
7 x 1" (25mm) tweeters,
4x 3" (75mm) up-firing full-range drivers
Surround speaker drivers
2x (50x90mm) racetrack drivers,
1x 2" (50mm) full-range drivers,
1x 3" (75mm) up-firing full-range drivers
Subwoofer speaker driver
2 x 8" (200mm)
Frequency range
33Hz - 20kHz (-6dB)
Audio input
Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Dimensions (W x H x D)
1404 x 58 x 136mm / 55.3" x 2.3" x 5.4"
Soundbar weight
5.93kg / 13lbs
Subwoofer Dimensions (W x H x D)
315 x 277 x 275mm / 12.4” x 10.9” x 10.8”
Subwoofer weight
12kg / 26.5lbs
Package size
 (W x H x D)
1124 x 381 x 452 mm / 44.3" x 15" x 17.8"
Weight of packaging
24.5kg / 54.0lbs
Control and connection information
USB PORT
Type A
USB RATING
5V DC, 0.5A
Supported file formats
MP3
MP3 code
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
RANDOM RATE OF MP3
16 - 48 kHz
MP3 BITRATE
80 - 320 kbps


Bluetooth version
Main Bar - v5.3, Detachable surround speaker - v5.4
Bluetooth profiles
A2DP v1.3, AVRCP v1.5
Detachable surround speaker Bluetooth profile: A2DP v1.4, AVRCP v1.6
Bluetooth transmitter frequency range
2400 MHz – 2483.5 MHz
Bluetooth is being transmitted.
<15 dBm (EIRP)
Wi-Fi networks
IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range
2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmission power
< 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range
5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmission power
5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
2.4G wireless transmitter frequency range
 2406 - 2474MHz
2.4G Wi-Fi transmitter power:
< 20 dBm (EIRP)
Video Specifications
HDMI VIDEO RECEIVER PORT
3
HDMI video transmission port
(with additional sound recovery channel, eARC)
1
VERSION OF HDMI HDCP
2.3
Supports HDR transmission.
HDR10+, Dolby Vision

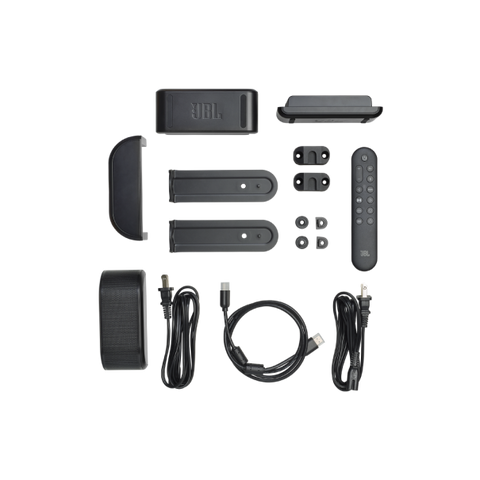

What's in the box?
  • 1 x JBL BAR 1300MK2 Soundbar
  • 2x detachable wireless surround speakers
  • 1 x Wireless Subwoofer
  • Remote control with 2 x AAA batteries
  • Power cords (maximum 6 cords, depending on the model and region).
  • 1 x HDMI cable
  • 2 x L-shaped wall mounting brackets for the main soundbar + 2 x U-shaped wall mounting brackets for surround speakers, including screws.
  • 4x side covers
  • Getting Started Guide
  • Safety Manual and Warranty Card
  • Mold plate for wall mounting
